Used SEM 822 Dozer Online For Sale
We're here to help: Easy ways to get the answers you need.

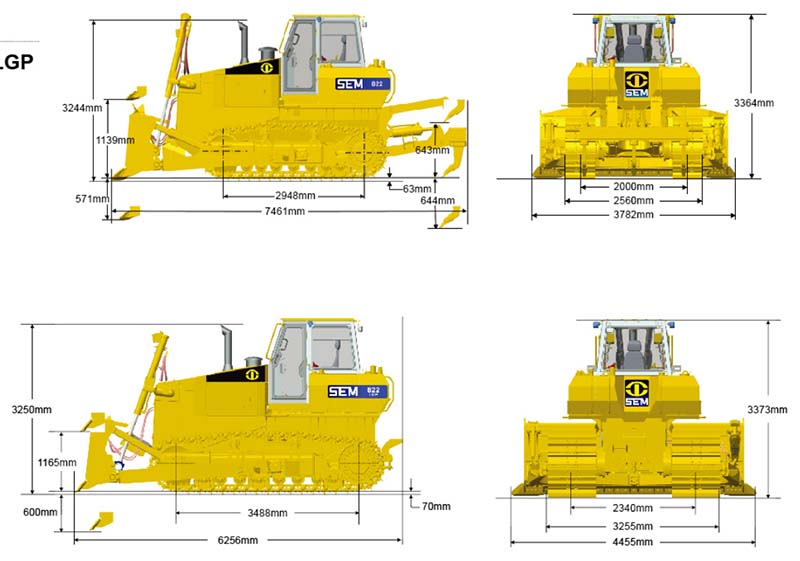

Vehicle Dimensions:

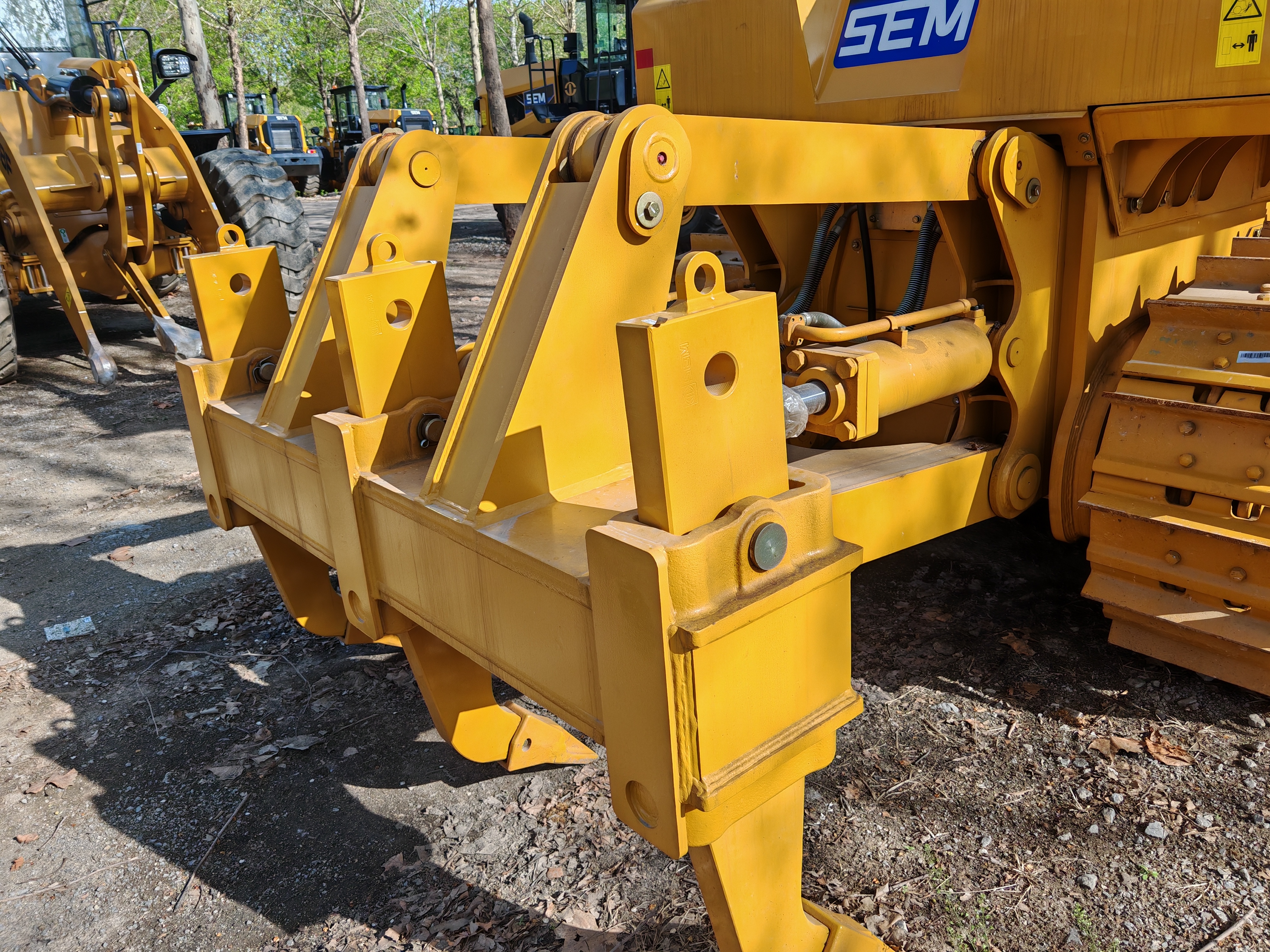

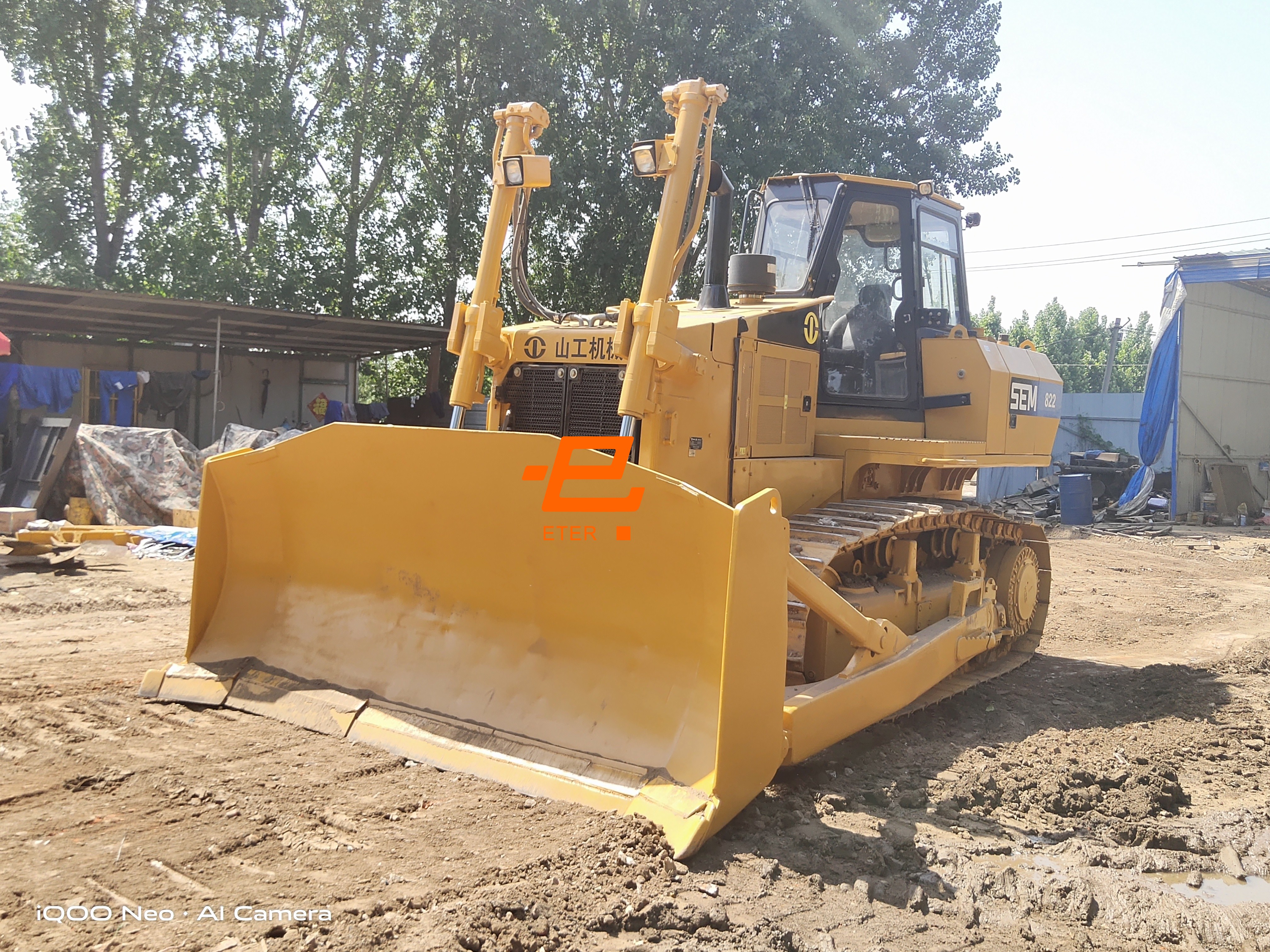

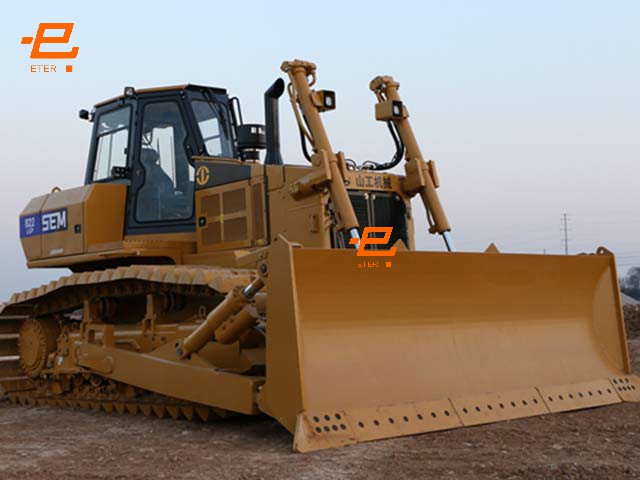

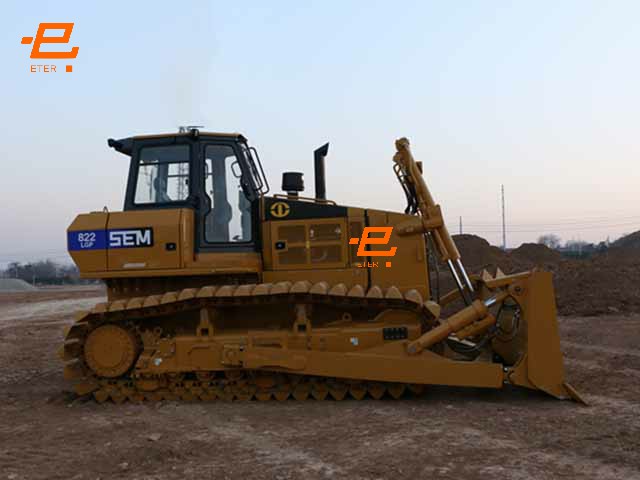

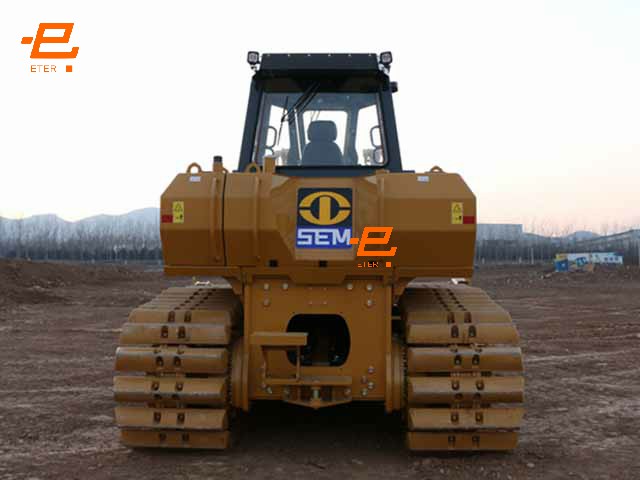

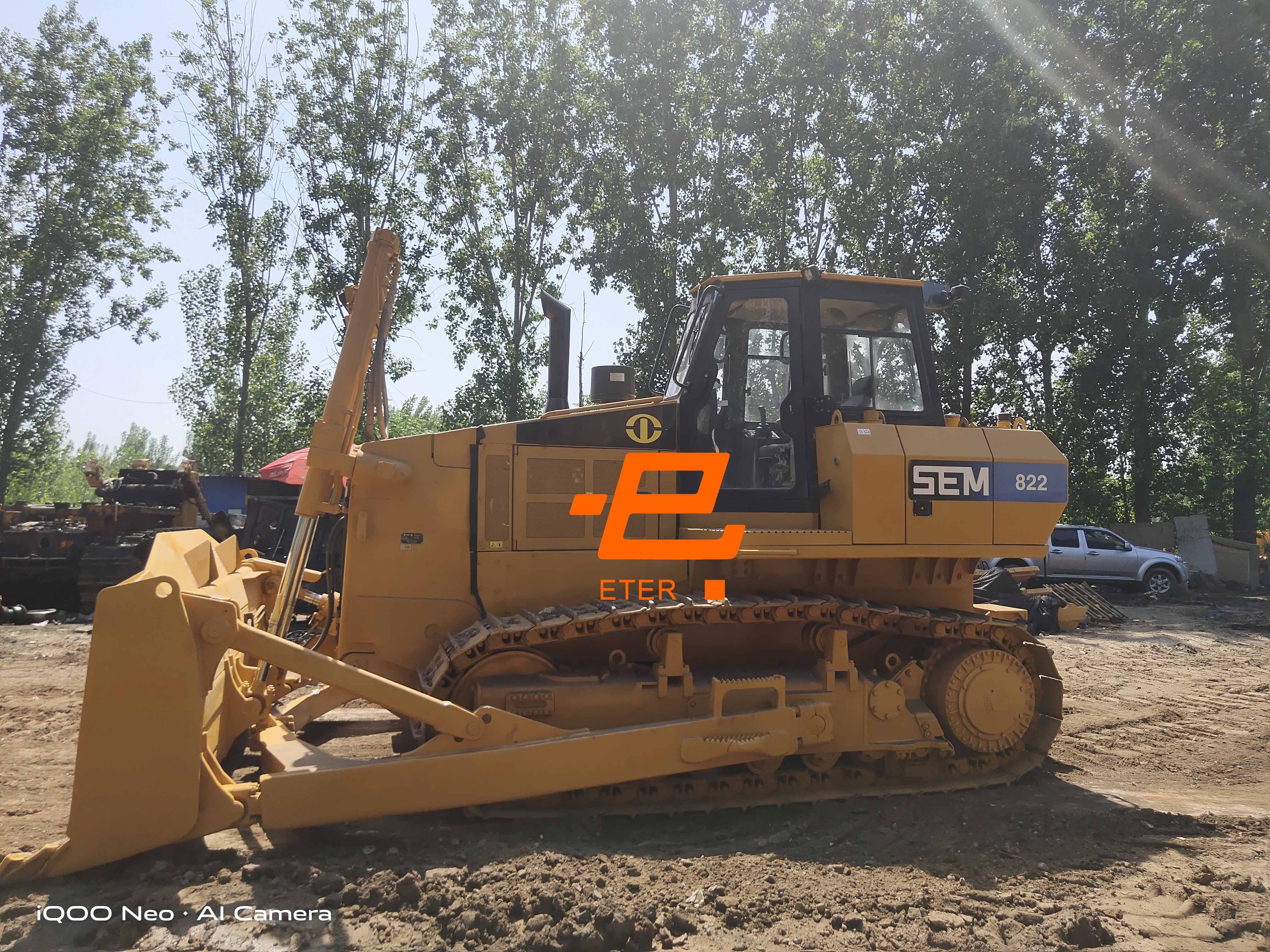

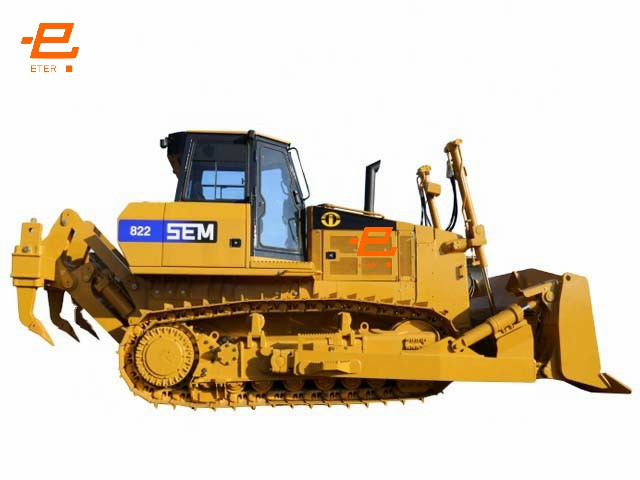

Vehicle Pics
Vehicle Video

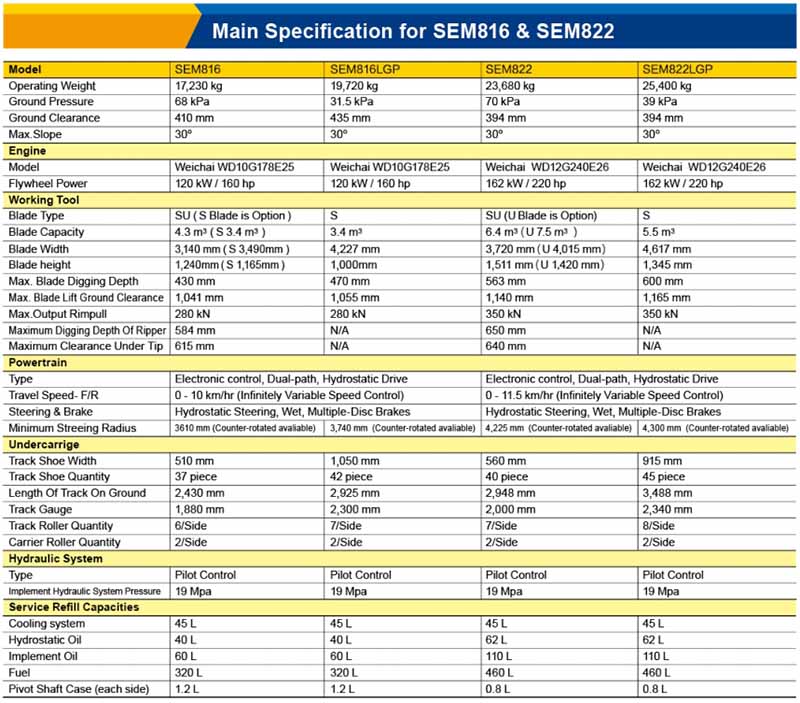

Specifications
| Main Specification | SHANTUI SD22 | |
| Overall dimension | mm | 5750 x 3725 x 3395 |
| Operating Weight | t | 23.4(without ripper) |
| Engine Model | Cummins Engine NTAA855-C280S20/ Weichai Engine WD12G240E26/ | |
| Rated Power/Speed | kw/rpm | 162/1800 |
| Track Center Distance | mm | 2000 |
| Ground Contact Land | mm | 2730 |
| Land Pressure | Mpa | 0.077 |
| Forward speed | kw/h | F1: 0~3.6 F2: 0~6.5 F3: 0~11.2 |
| Rear speed | kw/h | R1: 0~4.3 R2: 0~7.7 R3: 0~13.2 |
| Blade Digging Depth | mm | 540 |
| Ripper digging depth | mm | (T)666/ (S)695 |
| Blade Lifting Height | mm | 1210 |
| Ripper lifting height | mm | (T)555/ (S)515 |
| Grade Ability | ° | 30 |
| Track Width | mm | 560 |
| Blade capacity | m³ | Semi- U blade: 7.0 Stright blade: 6.4 Angle balde: 4.7 Standard U balde: 7.5 |
| Blade Type | stright, Semi-U, angle, U | |
| Blade Length*Width | mm | (S)3725*1315, (Angle)4365*1055 U3800*1343, (Semi-U), 3725*1374 |
| Ripper type | Single/Three teeth ripper | |

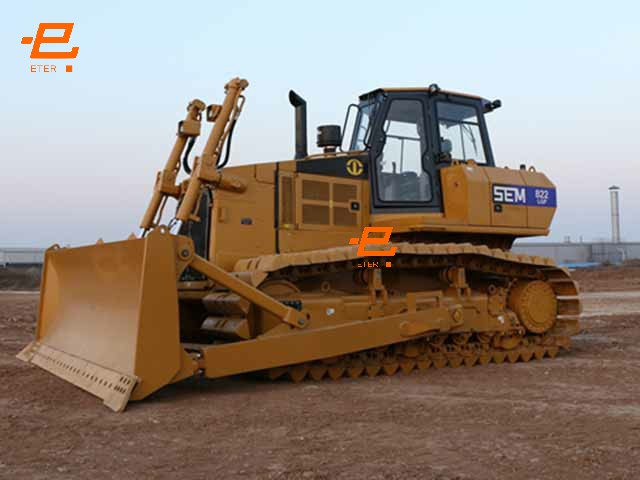

Vehicle Pics
