Used SEM 919 Grader
We're here to help: Easy ways to get the answers you need.

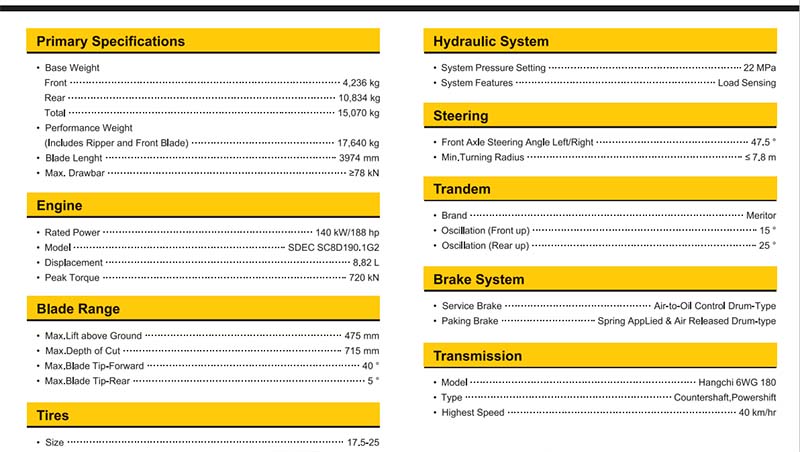

Specifications
https://youtu.be/SG9LKWPW-CE
| Engine Power | 190 HP |
| Operating Weight | 15070 Kg |
| Blade Width | 25 mm |
| Model Name/Number | 919 |
| Top Speed- Forward | 5.3 / 9.1 / 12 / 20 / 25 / 40 km/hr |
| Top Speed- Reverse | 5.4 / 12 / 25 km/hr |
| Blade Height | 607 mm |
| Min Turning Radius | 7.8 m |
| Fuel Tank Capacity | 280 L |
| No. Of Cylinders | 6 |
| Transmission Type | Hangchi 6WG180 |
| Max Drawbar Pull | Greater than or equal to 78 kN |
| Oscillation Angle | 15 / 25 degree (Front up / Rear up),+/- 16 deg (max) |
| Rear Axle Type | SEM ST22 |
| Steering Range/ Angle | 47.5 degree (left/right) |
| Brand | SEM |
| Articulation Angle | 20 degree (Frame) |
| Engine Oil Capacity | 25 L |
| Transmission Oil Capacity | 28 L |
| Final Drive Case Capacity | 36 L |
| Max Lift Above Ground | 475 mm |
| Wheelbase | 6140 mm |
| Engine Brand | SDEC SC9DK190,1G3 |
| Max Torque | 820 kN |
| Transmission Gear | 6F / 3R |
| Max Lean Angle | 18 degree (Front wheels) |
| Max Depth of Cut | 715 mm |
| Hydraulic Tank Capacity | 70 L |
| Tandem Oil Capacity | 140 L |
| Engine Coolant | 44 L |
Video
