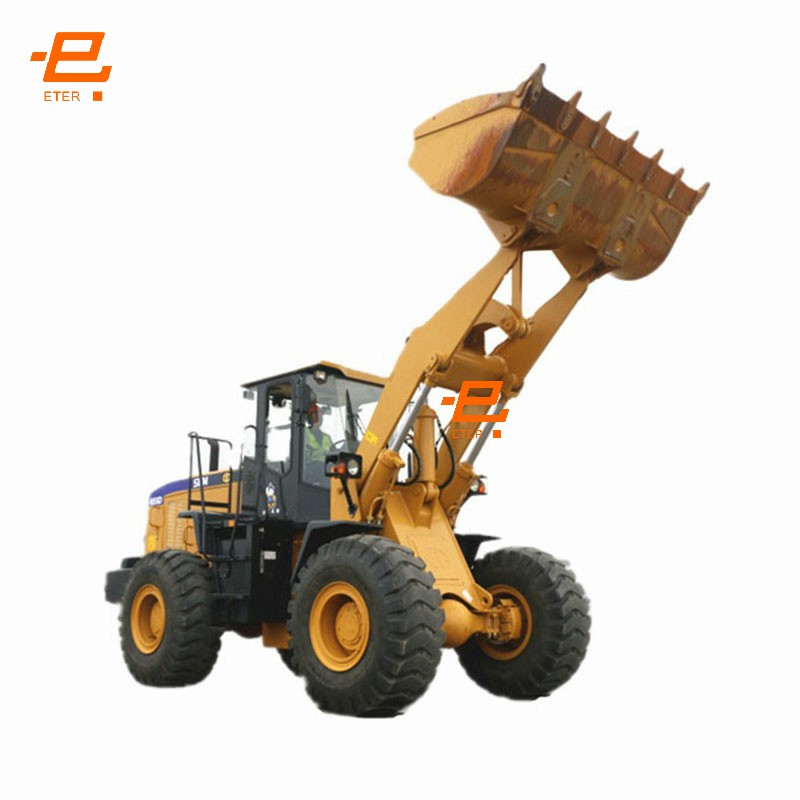

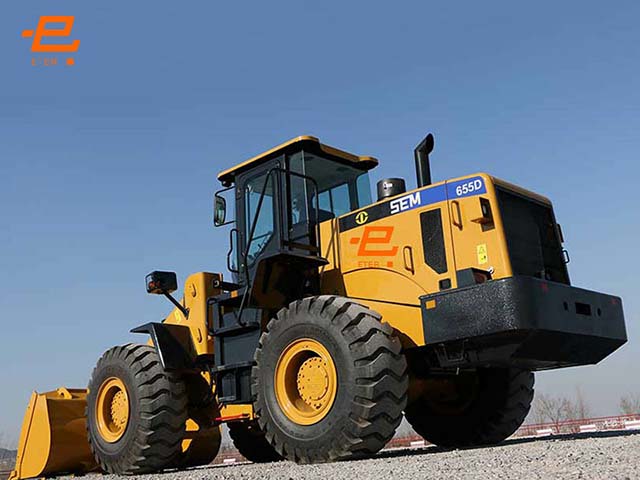

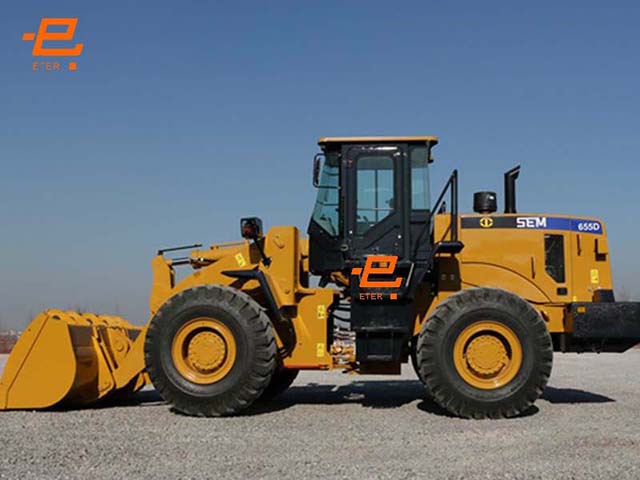

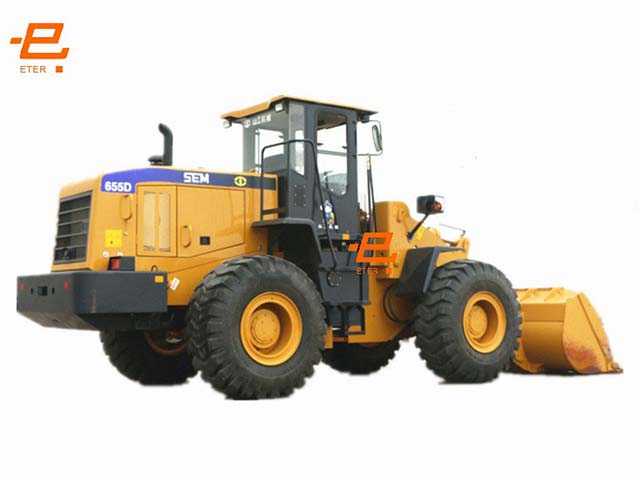

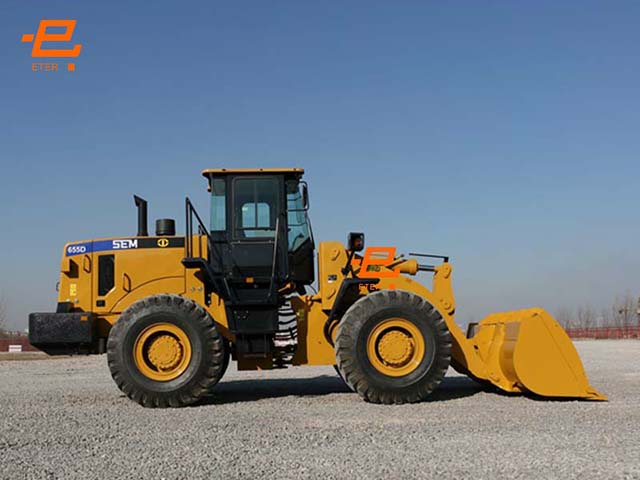

Used SEM 655D Wheel Loader
We're here to help: Easy ways to get the answers you need.
Specifications
| Items | SEM655D | |
| Main Specifications | ||
| Rated Load | kg | 5 000 |
| Operating Weight with Standard Bucket | kg | 16 550 |
| Bucket Capacity | m³ | 2.7-4.5 |
| Wheel Base | mm | 3 200 |

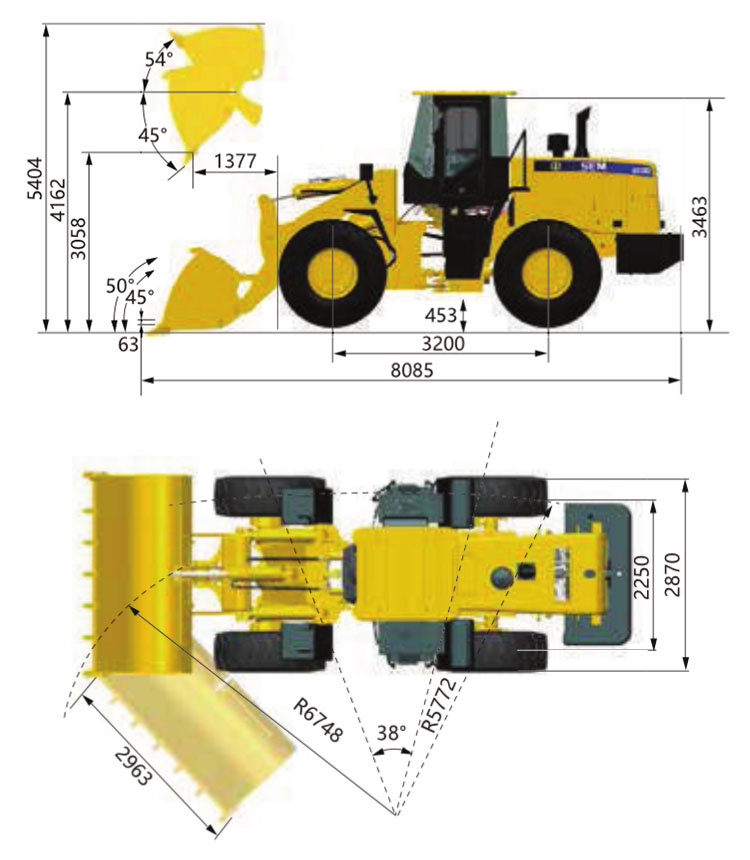

| Overall Dimension (outside of tire) | mm | 8 060x2 963x3 417 |
| Operating Specifications | ||
| Breakout Force | kN | 168 |
| Dump Clearance | mm | 3058 |
| Articulated Angle | ° | 38±1 |
| Transmission | ||
| Transmission Type | Countershaft, power shift | |
| Transmission Gears | F4/R4 | |
| Torque Converter Type | Sigle stage 3 elements | |
| Maker & Type | SEM TR200 | |
| Forward I/ Reverse I | km/h | 7.8/7.8 |
| Forward II/ Reverse II | km/h | 15/15 |
| Forward III/ Reverse III | km/h | 22/22 |
| Forward IV/ Reverse IV | km/h | 39/39 |
| Axle | ||
| Main Drive Type | Spiral bevel gear, single stage | |
| Final Drive Reduction Type | Planetary type, singe stage | |
| Rear - Oscillating +/- | ° | ±11 |
| Engine | ||
| Model | Cummins L9.3 | |
| Rated Power | kW | 162 |
| Rated Speed | r/min | 2 000 |
| Displacement | L | 9.3 |
| Implement Hydraulic | ||
| Implement System Type | Twin pump flow merging hydraulic system | |
| Boom Raise Time | s | 5.13 |
| Hydraulic Cycle Time (rated payload) | s | 9.3 |
| System Presure Setting | Mpa | 17 |
| Brake System | ||
| Service Brake | Dry & caliper, air to oil control | |
| Parking Brake | Drum type shoe brake,spring applied & oil released | |
| Steering System | ||
| System Type | Flow amplifying | |
| Steering Pump Type | Gear pump | |
| System Presure Setting | Mpa | 16 |
| Steering Angle (L/R) | ° | 38±1 |
| Tires | ||
| Size | 23.5-25 | |
| Type | Bias | |
| Layer | 16 | |
| Textured Type | L3 |
