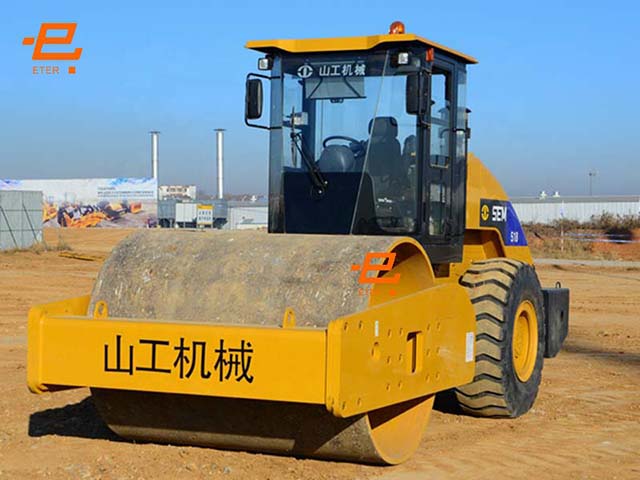

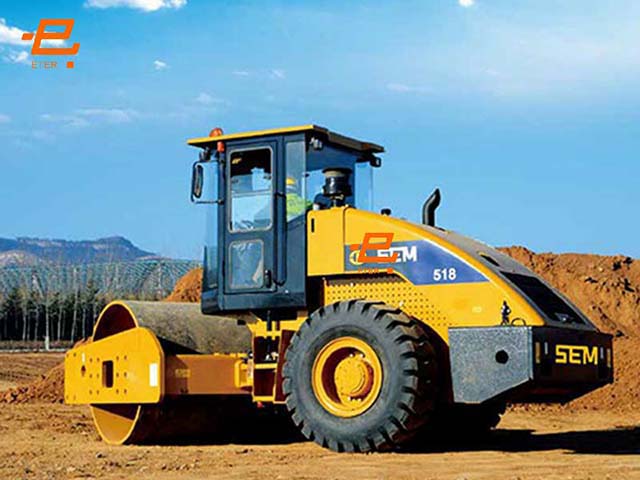

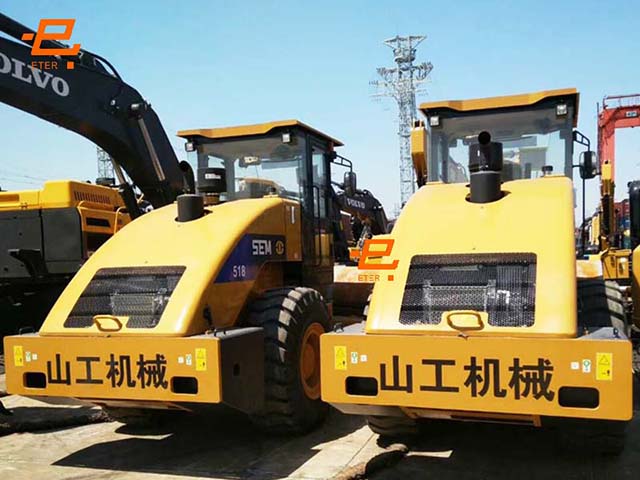

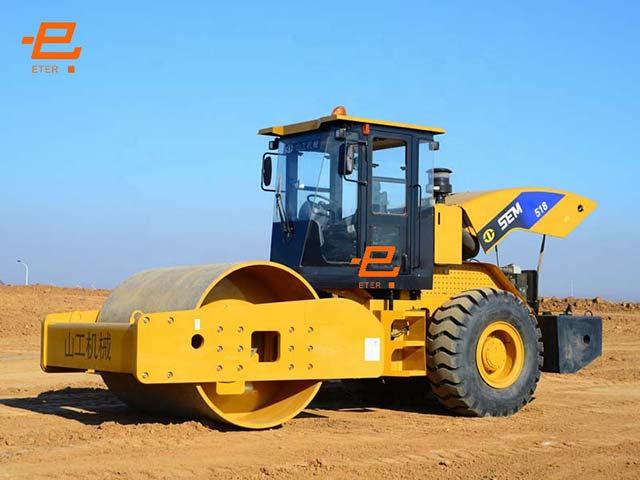

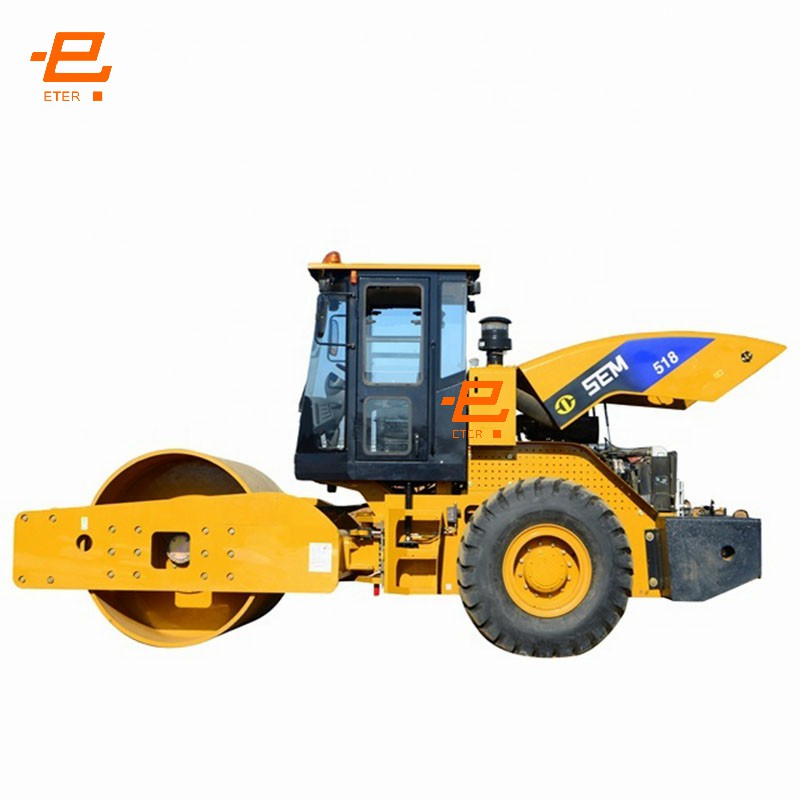

Used SEM 518 Roller
We're here to help: Easy ways to get the answers you need.
Specifications
| Model | SEM518 |
|---|---|
| Operating Weight | 18000kg |
| Compaction | |
| Vibration Frequency (High/Low) | 30/28Hz |
| Amplitude (High/Low) | 2/1mm |
| Excitation Force (High/Low) | 327/188KN |
| Static Pressure | 415N/cm |
| Engine | |
| Rated Power | 129kw |
| Speed | 2000r/min |
| Fuel Tank Volume | 262L |
| Hydraulic Oil Tank Volume | 80L |
| Drum | |
| Drum Width | 2130mm |
| Drum Diameter | 1600mm |
| Drum Thickness | 40mm |
| Tires | |
| Tires Type | 20.5-25 |
| Speed | |
| F/R | 2.98km/h |
| F/R | 5.88km/h |
| F/R | 9.60km/h |
| Swing Angle | ±12° |
| Steering Angle | ±33° |
| Outer Turning Radius | 6350mm |
| Max. Gradeability | 34% |
