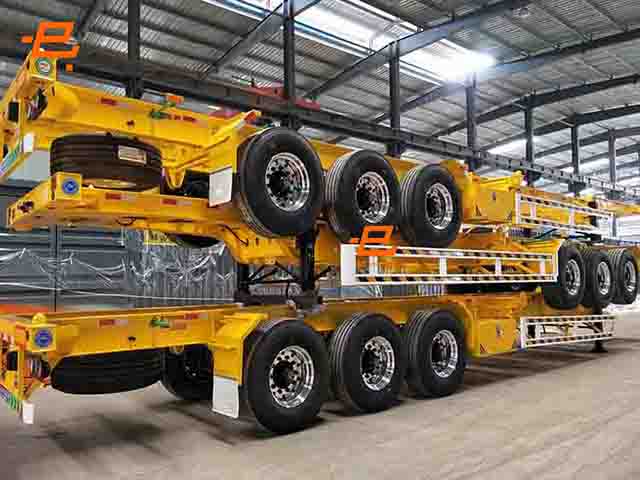

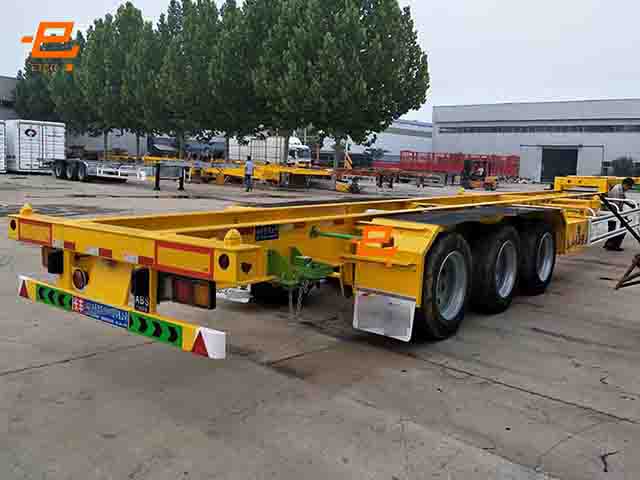

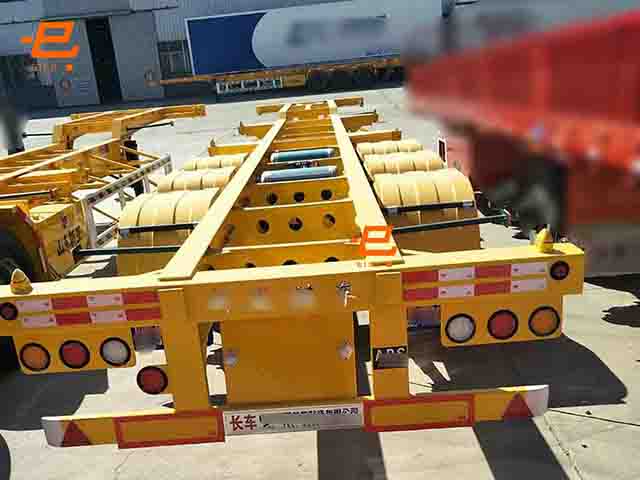

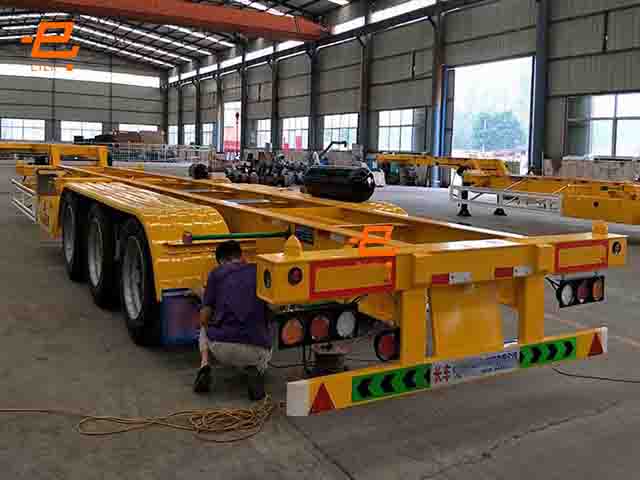

Container Skeleton Semitrailer
We're here to help: Easy ways to get the answers you need.
Product Specification
|
Overall Dimension(L*W*H)
|
12400*2500*1520
|
|
Tare Weight
|
5700KG
|
|
Loading Weight
|
30-45Ton
|
|
Main beam
|
Material: Q345B fabricated carbon steel; Type: straight type; Height: 480mm; Upper plate: 14mm； Bottom plate: 16mm Middle plate:
8mm Process: welded by automatic submerged-acr |
|
Cross beam
|
10# C type; Q235
|
|
Twist lock
|
12 units
|
|
King pin
|
50#
|
|
Axle
|
Brand: Xinya; Capacity: 13T16P QTY: 3 units
|
|
Tyre
|
Brand: Linglong; Type: 12R22.5-18PR; double mounted; QTY: 12 units
|
|
Rim
|
22.5*9.0-14, 12 units
|
|
Landing gear
|
28T total Lifting capacity and 50T static capacity; double speed; large pad feet;
|
|
Suspension
|
Mechanical system with beams equaliser
|
|
Leaf spring
|
Germany type; 90*13mm Qty: 10+10+10
|
|
Brake system
|
Brand: Xinya
Type: Dual line braking system
Brake air chamber: 6 in total, T30/30*4 + T30*2
Air tank: 40L*2 unit ABS: none
|
|
Electric system
|
24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc.
|
If you need more product information, please feel free to contact us.
