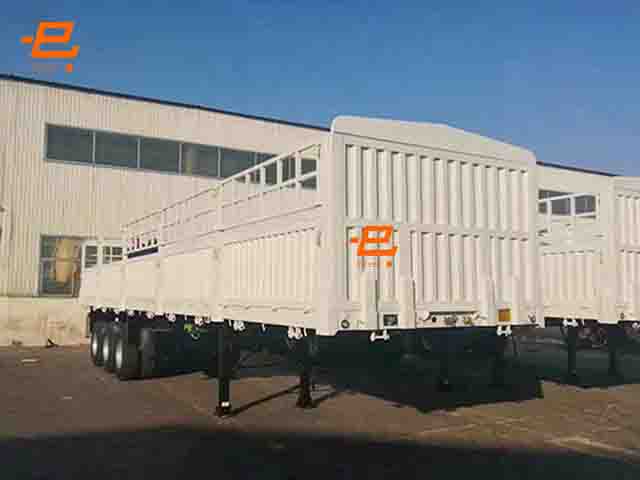

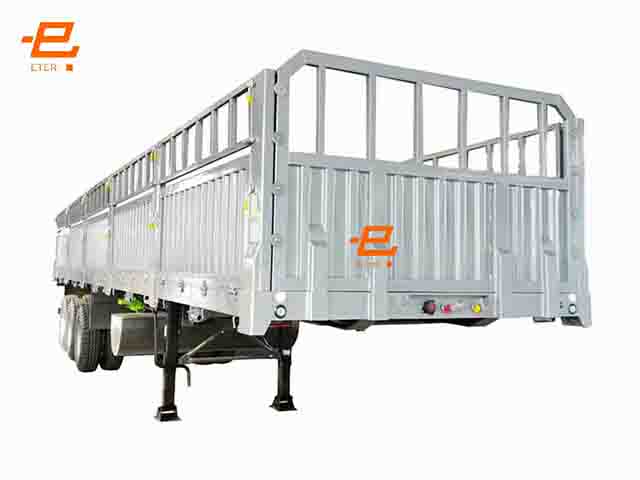

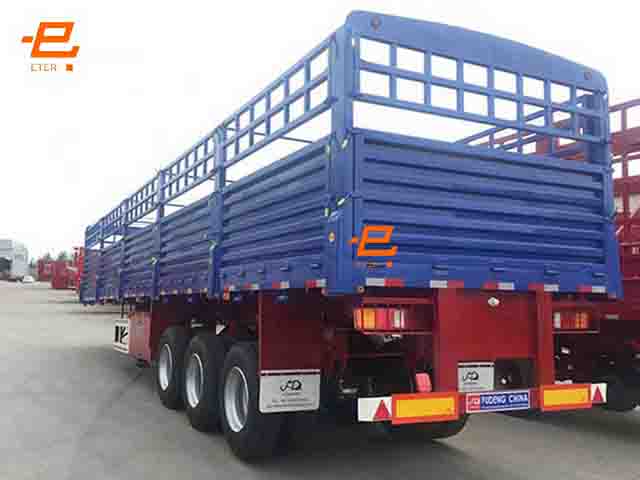

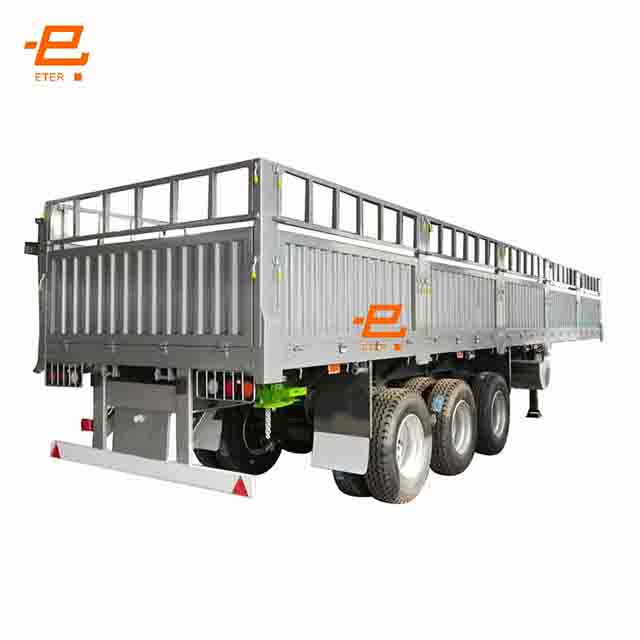

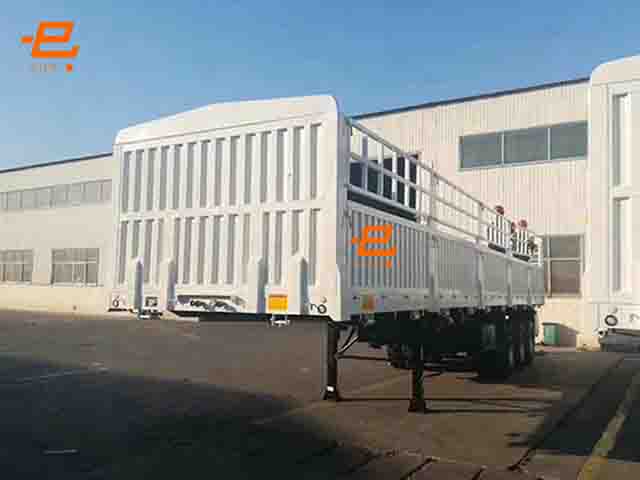

High Side Fence Semitrailer
We're here to help: Easy ways to get the answers you need.
Product Specification
|
Ype
|
side wall trailer
|
|
Function
|
2x 20ft and 1x40ft container or other stuff
|
|
Overall dimension
|
12500x2450x1600mm
|
|
Tare weight
|
8900kg
|
|
Loading weight
|
40000kg
|
|
Side guard
|
2900mm height, body panels
|
|
Axle
|
3 axle 13ton
|
|
Axle brand
|
FUWA/BPW
|
|
Suspension system
|
Mechanical Leaf Spring Suspension
|
|
Leaf spring
|
90(W)mm*13(Thick)mm*10 Layer,10/10/10
|
|
Tire
|
12R22.5 tubeless tire ,12unit
|
|
The material of Main beam
|
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
|
|
Side beam
|
Q235 16# channel steel
|
|
Platform plate
|
3mm plate
|
