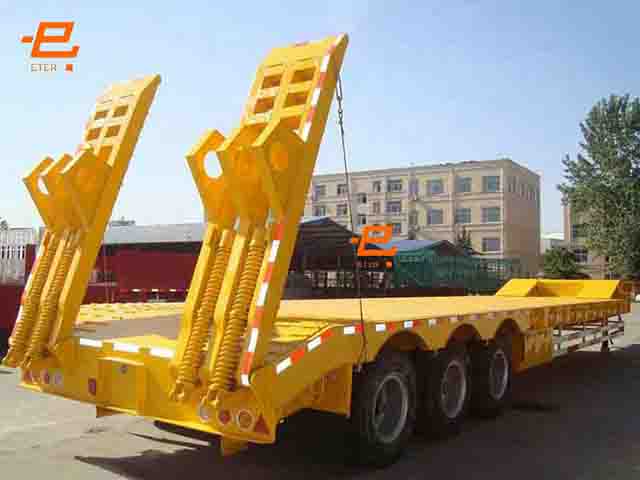

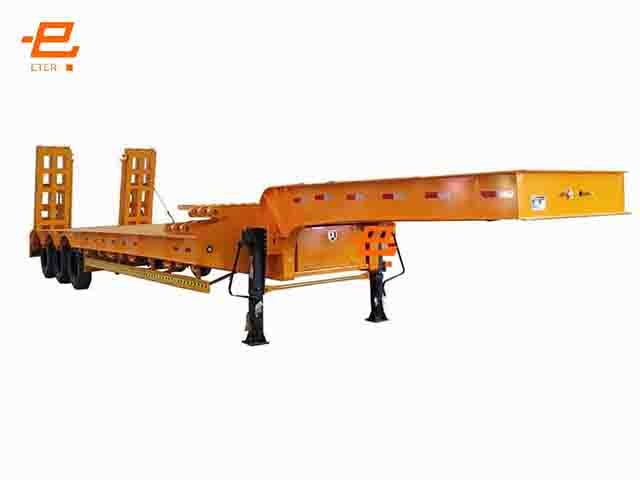

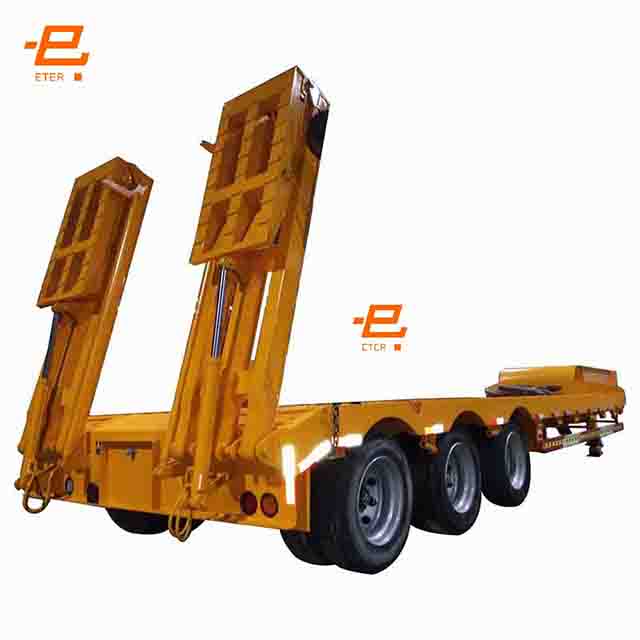

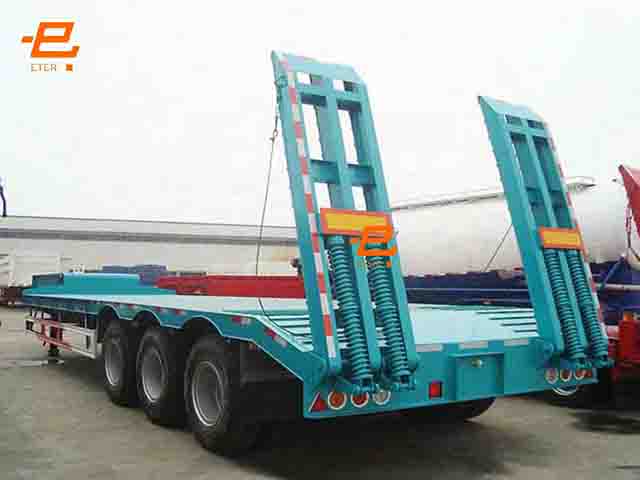

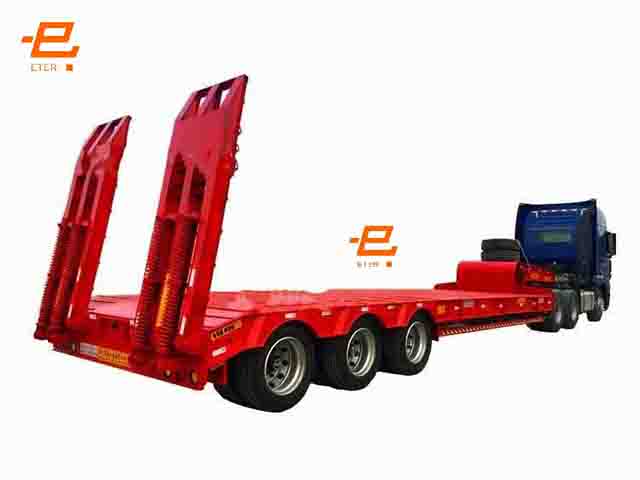

Lowbed Semitrailer
We're here to help: Easy ways to get the answers you need.
Product Specification
|
hydraulic ramp low bed lowbed truck semitrailer for sale in Mexico |
|
|
Dimension(Lx W x H)(mm) |
13000 x 3000 x 1650 |
|
Curb Weight(KG) |
10000 |
|
Loading Weight( KG) |
60000-80000 |
|
Departure Angle |
16 |
|
Axle Brand |
13TON Axle FUWA Brand |
|
Axle Number |
3 |
|
Suspension system |
Mechanical suspension |
|
Gooseneck and Ladders |
Commen |
|
Steel Spring |
10/10/10 |
|
Frame |
The height of the beam is 500mm, upper plate is 16mm, down plate is 18mm, middle plate is 10mm. |
|
Platform plate |
6mm Diamond Plate |
|
Tire Type and quantity |
12R22.5 12units Chinese brand |
|
Traction Pin |
50mm or 90mm JOST brand |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Unit |
|
Landing Leg |
JOST 28T load landing leg |
|
Brake system |
Dual Line braking system (ABS optional) |
|
Brake air chamber |
6 big air chambers |
|
Electrical system |
24V,7 Pole plug |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core standard Cable. |
|
|
Side Guard |
None |
|
Painting |
Color by customer’s requirement |
|
Packing |
Polish with wax before shipping |
|
Delivery way |
Transfer to China port, and carry by bulk ship, the freight cost depends on the volume. |
If you need more product information, please feel free to contact us.
