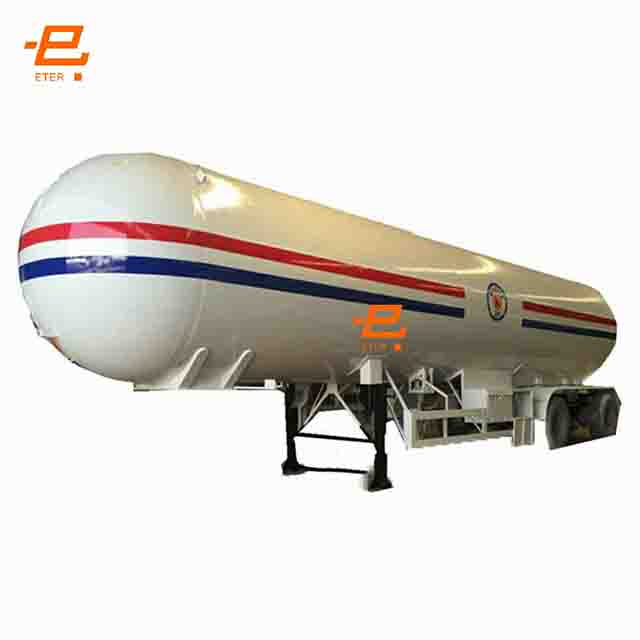

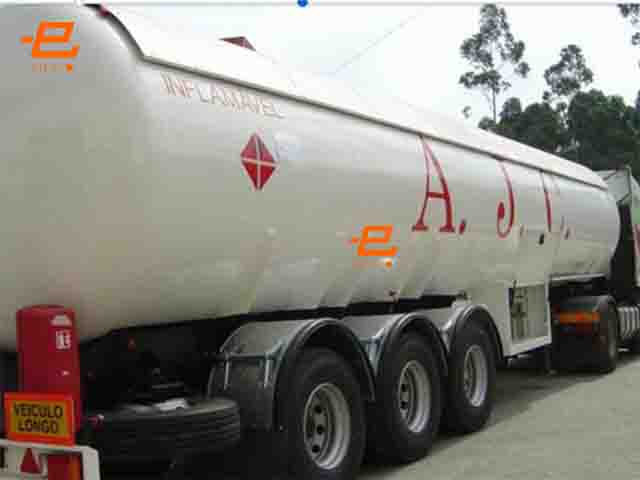

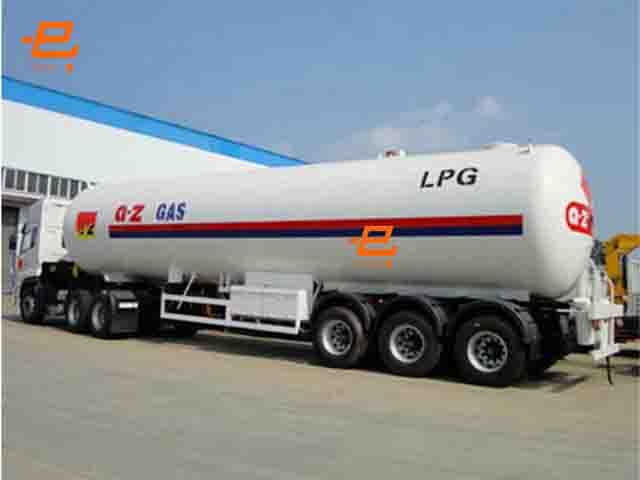

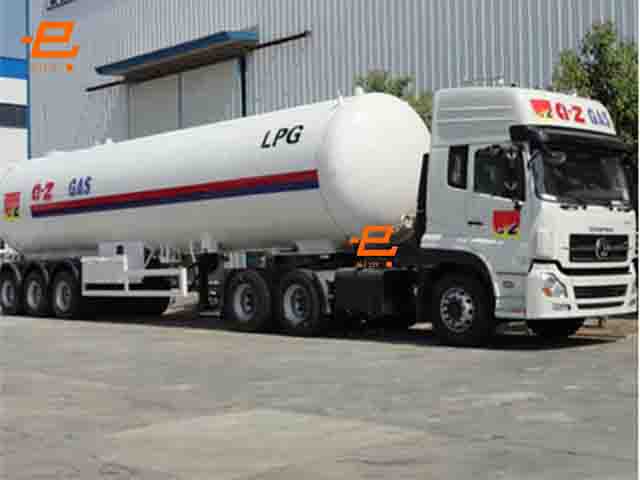

LPG Tank Semitrailer
We're here to help: Easy ways to get the answers you need.
Product Specification
|
Item
|
Specifications
|
|
Material
|
Q370R(Normalizing）
|
|
Usage
|
Liquefied Gas
|
|
Size
|
12000*2500*3990 (mm) (Other dimensions optional)
|
|
Work temperature
|
-20~50℃
|
|
Work pressure
|
≤1.61 Mpa
|
|
Capacity
|
40-65 m³
|
|
Emergency valve
|
Manual Gas phase DN25 and liquid phase DN50
|
|
Safety valve
|
Interior and full lift 2.5Mpa size 68
|
|
Level gauge
|
Float 50~2478
|
|
L.U.S
|
Quick tie-in Gas phase DN25 and liquid phase DN50
|
|
Axles
|
3 * 13ton capacity (Brand optional)
|
|
Suspension
|
Mechanical suspension (Air suspension optional)
|
|
Leaf spring
|
10pcs
|
|
Tire
|
12R22.5 315/80R22.5 12pcs (Other size optional)
|
|
Rim
|
9.00-22.5 12pcs (Other size optional)
|
|
King pin
|
2’’/3.5’’ bolt type
|
|
Landing gear
|
28 Ton two speed
|
|
Braking system
|
Double air chamber ,brake valve,40L air tanks ;ABS optional
|
|
Electrical
|
LED light , 7 ways ,24V
|
|
Painting
|
Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting
|
If you need more product information, please feel free to contact us.
