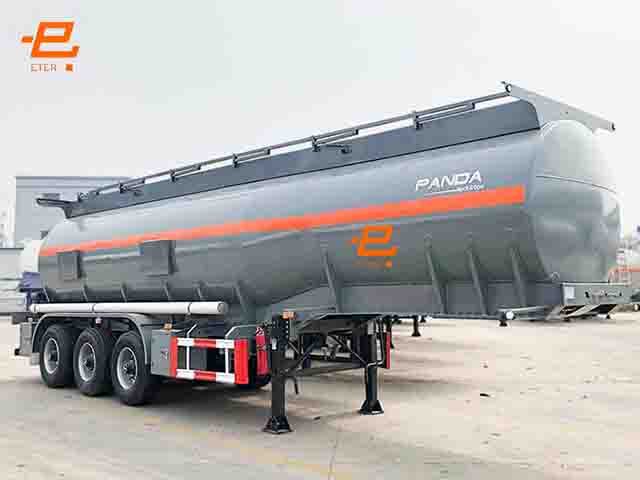

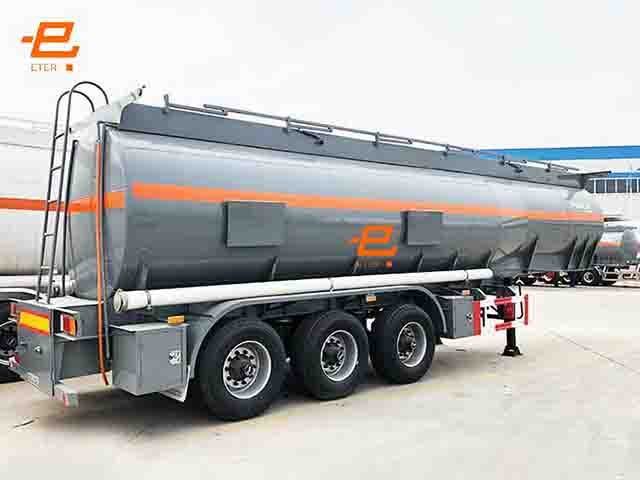

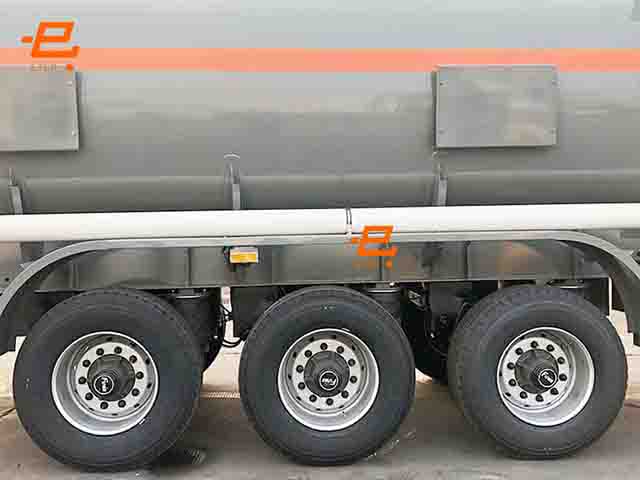

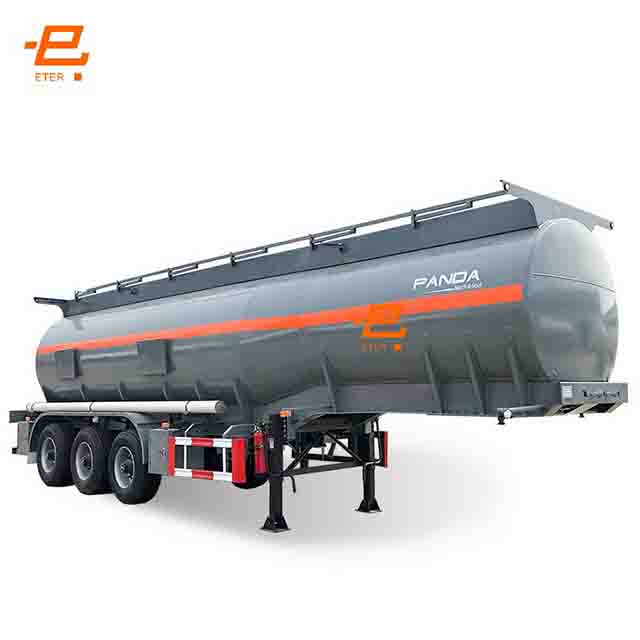

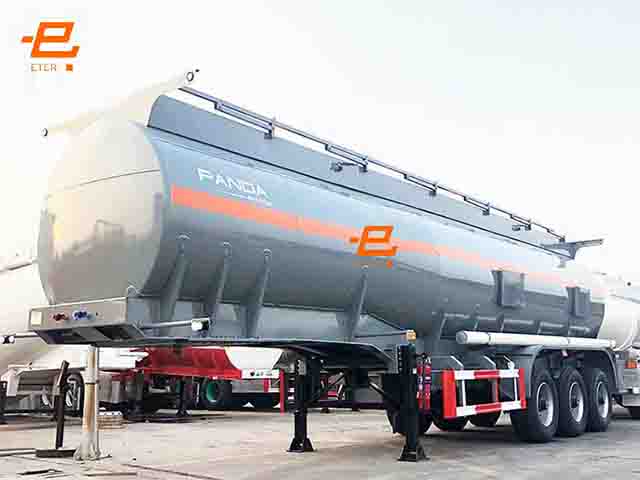

Petrol Tank Semitrailer
We're here to help: Easy ways to get the answers you need.
Product Specification
|
Type
|
Aluminum alloy fuel tank
|
|
Model Number
|
SKW9403GYYA/SKW9406GYYA/SKW9407GYYA/SKW9408GYYA/SKW9400GRY/SKW9401GRY
|
|
Tank body
|
|
|
Shape
|
Round or Square ------(optional)
|
|
Dimension
|
9500-13000*2500*3900mm (Exact size depends on the final design)
|
|
Tare Weight
|
About 8000kgs-12800kgs
|
|
Capacity
|
32,000-60,000 liters
|
|
Tank body material
|
5mm or 6mm/Q235 Carbon steel plate/ Aluminum alloy 5083 ,5182,5454 / Stainless steel
|
|
Dished End
|
6mm or 7mm/Q235 Carbon steel plate/ Aluminum alloy 5083 ,5182,5454 / Stainless steel
|
|
Manhole Cover
|
Carbon steel/ aluminum/ stainless steel manhole cover, diameter 500mm, 1-9 pieces
|
|
Bottom Valve
|
Aluminum / Stainless steel
|
|
Discharging Valve
|
Diameter 3" or 4" or 6"
|
|
Compartments
|
Optional
|
|
Discharging hose
|
Rubber tube, 2 pieces, 6 m each
|
|
Chassis
|
|
|
Main beams
|
Steel Q345B or Aluminum Alloy
|
|
Axle
|
13T/16T, FUWA/BPW /SHENGRUN brand
|
|
Kingpin
|
2" or 3.5" brand optional
|
|
Suspension
|
Mechanical suspension/Air suspension
|
|
Leaf spring
|
90mm (W) * 13mm (T)* 10 layer or 100mm *12mm *12 layer
|
|
Braking system
|
RE 6 relay valve, spring brake chamber, 2 pieces of 45 L air tanks
|
|
Tire
|
12.00R22.5/315/80R22.5/11.00R20/12.00R20 brand optional
|
|
Rim
|
9.00*22.5/8.0-20/8.5-20
|
|
ABS
|
Optional
|
|
Fire extinguiser
|
2 pieces
|
|
Spare tire carrier
|
2 pieces
|
|
Safety guard
|
Standard
|
|
Painting
|
Complete chassis sand blasting to clean rust, 1 coat of anti-corrosion primer, 2 coats of final painting
|
|
Tool box
|
One pieces 1m *0.5m*0.5m ( size can be customized)
|
|
Lights
|
LED, 24V
|
|
Shipping terms
|
By 40" HQ container or bulk vessel or RORO ship
|
If you need more product information, please feel free to contact us.
